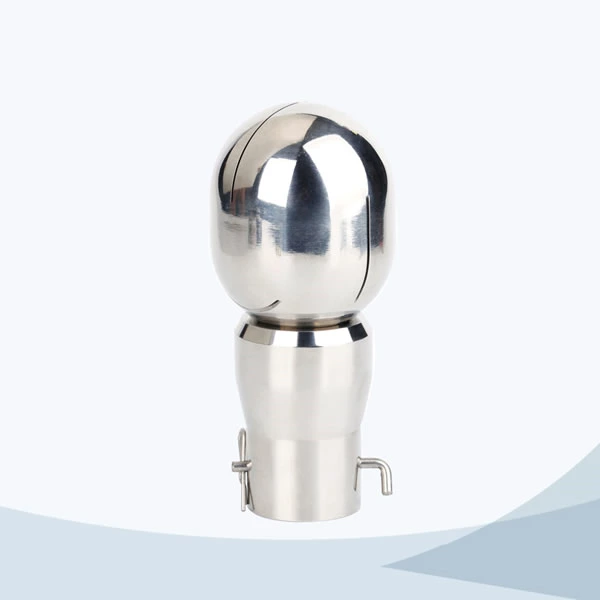

Sanitary clamped connection rotary cleaning ball

Model:
JN-CB1005
Code:
730729000

Cleaning ball is used for cleaning the inside of the tank.

Type: fixed or rotated type

Connection type: Welded, clamped, threaded, Pin type, Socket end

Standard: DIN, SMS, ISO, IDF, 3A

Material: SS304, SS316L

Specification: 1/2"-2 1/2" , DN20-DN80

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

Working pressure: 1--3 bar

Maximum operating temperature: 95 degree

Spray cleaning radius: the maximum effective radius 3m

Surface treatment: inner Ra0.5um, outside Ra0.8um

Sanitary clamped connection rotary cleaning ball

Sanitary clamped connection rotary cleaning ball
