Features:
- The completelyfull-through design for valve chamber can not bring any liquid resistance,
- so it is the best choice for dealing with sticky or grain liquid.
- Free maintenance
- Small operating torque
- Smaller and lighter than the others
- High precise casting body
- Pressure: 10bar
- Temperature: -60~ 180 degree
- Body type: Two way, Three way type( L type and T type)
- Working mode: Manual type, electrical type, pneumatic type
- Gaskets: PTFE EPDM
- Easy cleaning, easy maintenance, light weight,
- Connection end: Weld, tri-clamped, union, flange,male threading, female threading
- Standard: DIN, SMS, ISO, 3A, IDF
- Material: SS304, SS316L
- Inside surface finish: Ra0.4
- Outside surface finish: Ra 0.6

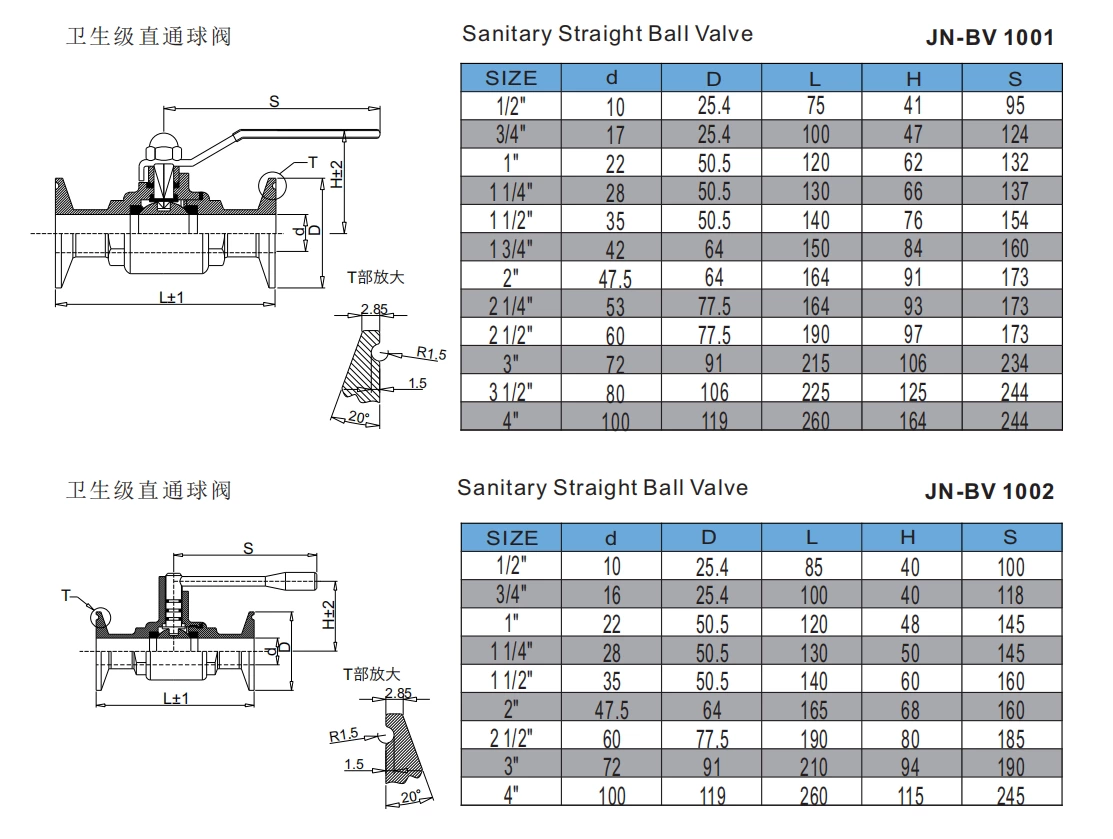

- Size: DN15-DN100 , 1/2”-4”
- Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
Applications
It Is Widely Used In Beverage, Brewing, Oil Refinery, Cosmetic, Chemical Industries.
Design and features
- Free of maintenances
- Compact and portable
- Small operating torque
- Gasket complies with PTFE FDA 177.2600
- Hand lever can be installed on the side of the valve body, no matter of the flow direction.
- Connection ends: thread, clamp, weld,flange, DIN, SMS, RJT, FIL.
- It can match with pneumatic and electric actuators.
- Material for the part contacted with media is AISI 304/316L. Other part is AISI 304
- Type of valves: One way ball valve, three-piece ball valve. Three-way ball valve
- Type of cores: T type, L type, direct type.
- Material quality:AISI 304,316L
